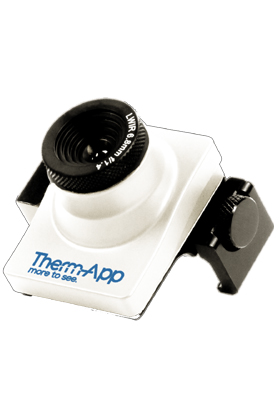

Opgal Therm-App MD

​Mobile Thermal Imaging Device for Body Temperature Measurement

In 2003, OPGAL was the first on the market employ thermal imaging cameras to measure the skin temperature of airline passengers passing through airport checkpoints located within SARS-affected regions. People exhibiting elevated skin temperatures, which may indicate a fever, could then be isolated for further evaluation to determine the cause. Similar quarantine procedures may help minimize the spread of the Corona Virus outbreak. ThermApp MD is a vital tool for fever detection in high-risk areas.

Product Features

  • Uniquely calibrated to measure temperature differences on human skin.
  • Supported devices: Android 8 and up.
  • Includes Mini Android Single Board Computer source.
  • Available in a 6.8mm and 19mm lens configuration.

Specifications:

Smartphone
Minimal Requirements Android 8 and above, supporting USB OTG
High Resolution Touchscreen Yes *
Software
Measurement Tools

Center Spot

Hot/cold threshold based pallets

Manual and auto scale



Measurement Settings Emissivity, Reflected Temperature
Annotations Text & Video Annotations
Output Video & Audio (H.264), Snapshot

(IR, VIS, Metadata)

Instant Share Dropbox, Email, SMS
Android Share Via media gallery
Color Palettes Rainbow, Iron, Vivid, Grey, Red Hot, Blue Cold, PSY, Lava, Green
Temperature Scale Range Auto, Manual
Zoom Continuous digital zoom using touchscreen
Feature updates Yes (via Google Play)
Maintenance Bad pixel repair utility
Quick access menu One touch
Package includes Thermal Camera

OTG Cable

Mini Android Single Board Computer

100-200VAC power cable



Measurement
Resolution 384 x 288 pixels (>110,000 pixels )
Accuracy +/-1°C @ target temperature ranges of 25°- 45° C (@ ambient temp. of 25°C)
Sensitivity NETD <0.07°C
Temperature Range 0 – 50 °C
NUC Calibration Shutterless
Camera Hardware
Imager 384 x 288 microbolometer LWIR 7.5 -14um
Optics 6.8mm lens (55° x 41°). Optional lenses available.
Focus Manual, 0.2m to infinity
Frame Rate 8.7Hz
Weight 123 grams / 4.33 ounces
Size 55 x 65 x 40mm (2.16 x 2.55 x 1.57in)
Operating Temperature -10°C to +50°C (14°F to +122°F)
Storage Temperature -20°C to +60°C (-4°F to +140°F)
Power Supply No battery, 5V over USB OTG cable, power consumption < 0.5W
Certifications CE, FCC, RoHS
Encapsulation IP54
Visible Camera Typically 8 megapixels*
Mount/Handle Standard tripod mount, using 1/4″-20
Device Attachment Clip-on for smartphone (5 -10cm span)
